J系列-2700
發(fā)布日期：2024-01-12 瀏覽次數(shù)：624

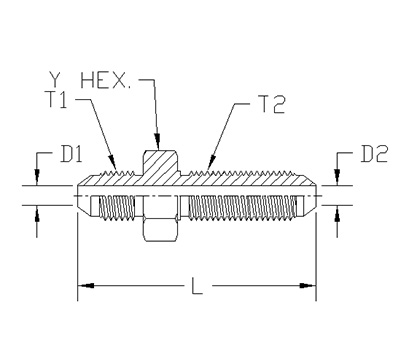

| ITEM | P/N | Y HEX | T1 | D1 | T2 | D2 | L |
| 1 | 2700-03-03-FG | 0.625 | 3/8-24 UNF | 0.125 | 3/8-24UNF | 0.125 | 1.9 |
| 2 | 2700-04-04-FG | 0.688 | 7/16-20 UNF | 0.172 | 7/16-20 UNF | 0.172 | 2.07 |
| 3 | 2700-05-05-FG | 0.75 | 1/2-20 UNF | 0.234 | 1/2-20 UNF | 0.234 | 2.07 |
| 4 | 2700-06-06-FG | 0.813 | 9/16-18 UNF | 0.297 | 9/16-18 UNF | 0.297 | 2.18 |
| 5 | 2700-08-08-FG | 1.000 | 3/4-16 UNF | 0.391 | 3/4-16 UNF | 0.391 | 2.44 |
| 6 | 2700-10-10-FG | 1.125 | 7/8-14UNF | 0.484 | 7/8-14UNF | 0.484 | 2.74 |
| 7 | 2700-12-12-FG | 1.375 | 1-1/16-12 UN | 0.609 | 1-1/16-12 UN | 0.609 | 3.09 |
| 8 | 2700-16-16-FG | 1.625 | 1-5/16-12 UN | 0.844 | 1-5/16-12 UN | 0.844 | 3.14 |
| 9 | 2700-20-20-FG | 1.875 | 1-5/8-12 UN | 1.078 | 1-5/8-12 UN | 1.078 | 3.31 |
| 10 | 2700-24-24-FG | 2.125 | 1-7/8-12 UN | 1.312 | 1-7/8-12 UN | 1.312 | 3.52 |
