B系列-60-6006
發(fā)布日期：2024-01-09 瀏覽次數(shù)：626

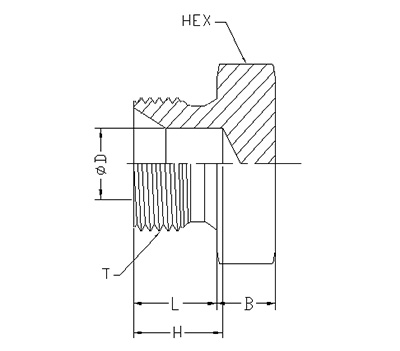

| ITEM | P/N | T | D | H | L1 | L2 | HEX |
| 1 | 6006-02 | G1/8-28 | 3.5 | 6.5 | 8.0 | 5 | 14 |
| 2 | 6006-04 | G1/4-19 | 6.0 | 9.0 | 11.0 | 7 | 19 |
| 3 | 6006-06 | G3/8-19 | 7.9 | 9.5 | 12.0 | 8 | 22 |
| 4 | 6006-08 | G1/2-14 | 11.1 | 11.0 | 14.0 | 10 | 27 |
| 5 | 6006-12 | G3/4-14 | 14.5 | 13.0 | 16.0 | 12 | 32 |
| 6 | 6006-16 | G1-11 | 20.0 | 15.0 | 19.0 | 12.5 | 41 |
| 7 | 6006-20 | G1-1/4-11 | 28.6 | 16.0 | 20.0 | 13.5 | 50 |
| 8 | 6006-24 | G1-1/2-11 | 33.3 | 18.0 | 22.0 | 15 | 55 |
| 9 | 6006-32 | G2-11 | 46.0 | 20.0 | 25.0 | 19 | 70 |
