B系列-60-6000-R-1
發(fā)布日期：2024-01-09 瀏覽次數(shù)：650

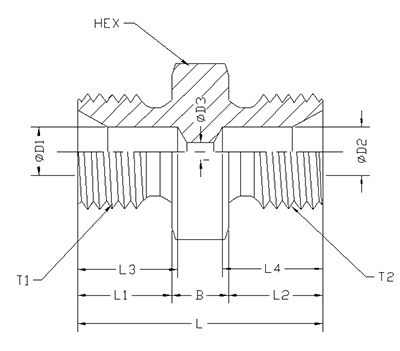

| ITEM | P/N | T1 | T2 | D1 | D2 | D3 | L1 | L2 | L3 | L4 | B | L | HEX |
| 1 | 6000-04-04-R-1 | G1/4-19 | G1/4-19 | 6.0 | 6.0 | 1.0 | 11.75 | 11.75 | 12.50 | 12.50 | 7.0 | 30.5 | 19 |
| 3 | 6000-06-06-R-1 | G3/8-19 | G3/8-19 | 7.9 | 7.9 | 1.0 | 12.00 | 12.00 | 12.50 | 12.50 | 8.0 | 32.0 | 22 |
| 5 | 6000-08-08-R-1 | G1/2-14 | G1/2-14 | 11.1 | 11.1 | 1.0 | 14.00 | 14.00 | 14.50 | 14.50 | 10.0 | 38.0 | 27 |
