P系列-6902
發(fā)布日期：2024-01-16 瀏覽次數(shù)：663

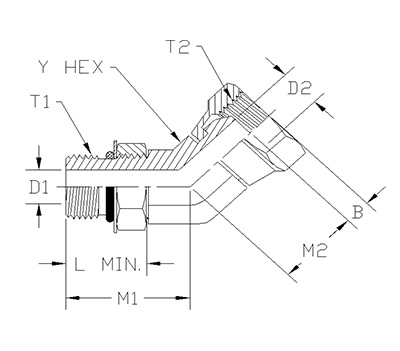

| ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 |
| 1 | 6902-04-04-NWO-FG | 0.438 | 7/16-20 UNF | 1.05 | 0.172 | 1/4-18 NPSM | 0.61 | 0.21 |
| 2 | 6902-06-06-NWO-FG | 0.562 | 9/16-18 UNF | 1.14 | 0.297 | 3/8-18 NPSM | 0.83 | 0.32 |
| 3 | 6902-08-06-NWO-FG | 0.75 | 3/4-16 UNF | 1.3 | 0.391 | 3/8-18 NPSM | 0.82 | 0.32 |
| 4 | 6902-08-08-NWO-FG | 0.75 | 3/4-16 UNF | 1.3 | 0.391 | 1/2-14 NPSM | 0.89 | 0.44 |
| 5 | 6902-10-08-NWO-FG | 0.875 | 7/8-14 UNF | 1.52 | 0.484 | 1/2-14 NPSM | 0.88 | 0.44 |
| 6 | 6902-12-12-NWO-FG | 1.062 | 1-1/16-12 UN | 1.73 | 0.609 | 3/4-14 NPSM | 1.02 | 0.61 |
| 7 | 6902-16-16-NWO-FG | 1.312 | 1-5/16-12 UN | 1.86 | 0.844 | 1-11-1/2 NPSM | 1.15 | 0.78 |
