P系列-1603
發(fā)布日期：2024-01-16 瀏覽次數(shù)：715

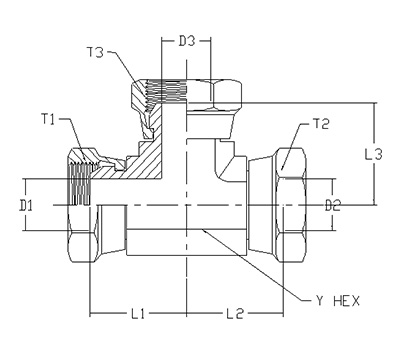

| P/N | Y HEX | T1 | T2 | T3 | L1 | L2 | L3 | D1 | D2 | D3 |
| 1603-04-04-04-FG | 0.562 | 1/4-18 NPSM | 1/4-18 NPSM | 1/4-18 NPSM | 0.88 | 0.88 | 0.88 | 0.21 | 0.21 | 0.21 |
| 1603-06-06-06-FG | 0.75 | 3/8-18 NPSM | 3/8-18 NPSM | 3/8-18 NPSM | 0.99 | 0.99 | 0.99 | 0.32 | 0.32 | 0.32 |
| 1603-08-06-08-FG | 0.875 | 1-2-14 NPSM | 3/8-18 NPSM | 1-2-14 NPSM | 1.11 | 1.04 | 1.11 | 0.44 | 0.32 | 0.44 |
| 1603-08-08-08-FG | 0.875 | 1/2-14 NPSM | 1/2-14 NPSM | 1/2-14 NPSM | 1.11 | 1.11 | 1.11 | 0.44 | 0.44 | 0.44 |
| 1603-16-16-16-FG | 1.312 | 1-11-1/2 NPSM | 1-11-1/2 NPSM | 1-11-1/2 NPSM | 1.54 | 1.54 | 1.54 | 0.78 | 0.78 | 0.78 |
| 1603-20-20-20-FG | 1.625 | 1-1/4-11-1/2 NPSM | 1-1/4-11-1/2 NPSM | 1-1/4-11-1/2 NPSM | 1.73 | 1.73 | 1.73 | 1.01 | 1.01 | 1.01 |
