J系列-6606
發(fā)布日期：2024-01-12 瀏覽次數(shù)：758

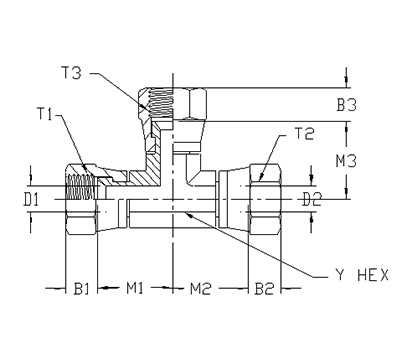

| ITEM | P/N | Y HEX | T1 | T2 | T3 | M1 | M2 | M3 | D1 | D2 | D3 |
| 1 | 6606-04-04-04-FG | 0.438 | 7/16-20UNF | 7/16-20UNF | 7/16-20UNF | 1.000 | 1.000 | 1.000 | 0.172 | 0.172 | 0.172 |
| 6606-05-05-05-FG | 0.562 | 1/2-20UNF | 1/2-20UNF | 1/2-20UNF | 1.060 | 1.060 | 1.060 | 0.234 | 0.234 | 0.234 | |
| 2 | 6606-06-06-06-FG | 0.562 | 9/16-18 UNF | 9/16-18 UNF | 9/16-18 UNF | 1.250 | 1.250 | 1.250 | 0.297 | 0.297 | 0.297 |
| 3 | 6606-08-08-08-FG | 0.750 | 3/4-16UNF | 3/4-16UNF | 3/4-16UNF | 1.380 | 1.380 | 1.380 | 0.391 | 0.391 | 0.391 |
| 4 | 6606-10-10-10-FG | 0.875 | 7/8-14UNF | 7/8-14UNF | 7/8-14UNF | 1.620 | 1.620 | 1.620 | 0.484 | 0.484 | 0.484 |
| 5 | 6606-12-12-12-FG | 1.062 | 1 1/16-12UN | 1 1/16-12UN | 1 1/16-12UN | 1.750 | 1.750 | 1.750 | 0.609 | 0.609 | 0.609 |
| 6 | 6606-16-16-16-FG | 1.312 | 1 5/16-12UN | 1 5/16-12UN | 1 5/16-12UN | 2.000 | 2.000 | 2.000 | 0.844 | 0.844 | 0.844 |
