J系列-6402
發(fā)布日期：2024-01-12 瀏覽次數(shù)：688

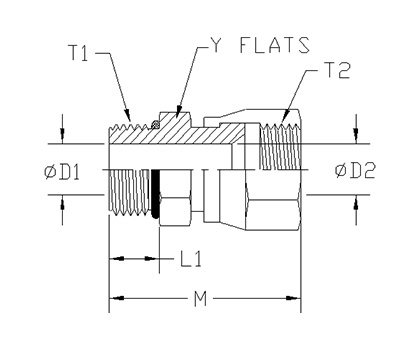

| ITEM | P/N | Y FLATS | D1 | D2 | T1 | T2 | L1 | M |
| 1 | 6402-10-10-O | 1.000 | 0.484 | 0.484 | 7/8-14UNF | 7/8-14UNF | 0.5 | 1.89 |
| 2 | 6402-10-12-O | 1.250 | 0.484 | 0.609 | 7/8-14UNF | 1 1/16-12UN | 0.5 | 2.07 |
| 3 | 6402-12-10-O | 1.250 | 0.484 | 0.484 | 1-1/16-12UN | 7/8-14UNF | 0.594 | 2.06 |
| 4 | 6402-16-16-O | 1.500 | 0.844 | 0.844 | 1 5/16-12UN | 1 5/16-12UN | 0.594 | 2.38 |
| 5 | 6402-20-20-O | 1.875 | 1.078 | 1.078 | 1 5/8-12UN | 1 5/8-12UN | 0.594 | 2.455 |
