J系列-37-6021
發(fā)布日期：2024-01-12 瀏覽次數(shù)：739

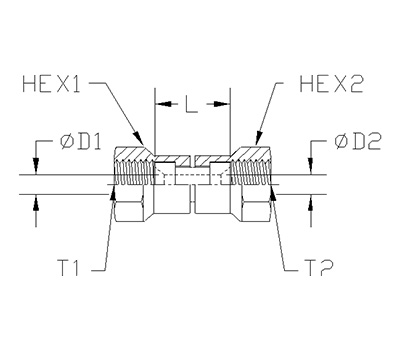

| ITEM | P/N | T1 | T2 | L | D1 | D2 | HEX1 | HEX2 |
| 1 | 6021-04-04 | 7/16-20 UNF | 7/16-20 UNF | 0.65 | 0.172 | 0.172 | 0.562 | 0.562 |
| 2 | 6021-06-06 | 9/16-18 UNF | 9/16-18 UNF | 0.80 | 0.297 | 0.297 | 0.688 | 0.688 |
| 3 | 6021-08-08 | 3/4-16 UNF | 3/4-16 UNF | 0.89 | 0.391 | 0.391 | 0.875 | 0.875 |
| 4 | 6021-10-10 | 7/8-14 UNF | 7/8-14 UNF | 0.97 | 0.484 | 0.484 | 1 | 1 |
| 5 | 6021-12-12 | 1 1/16-12 UN | 1 1/16-12 UN | 1.05 | 0.609 | 0.609 | 1.25 | 1.25 |
