F系列-FS2407
發(fā)布日期：2024-01-12 瀏覽次數(shù)：724

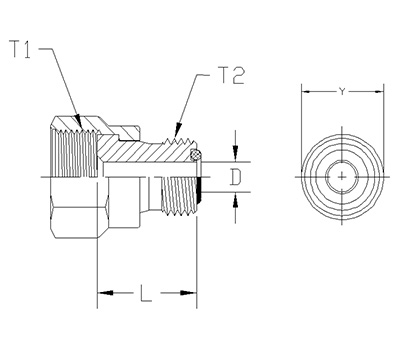

| ITEM | P/N | Y | T1 | T2 | L | D |
| 1 | FS2407-06-04-FG | 0.620 | 11/16-16UNF | 9/16-18UNF | 0.770 | 0.172 |
| 2 | FS2407-08-06-FG | 0.745 | 13/16-16UNF | 11/16-16UNF | 0.880 | 0.264 |
| 3 | FS2407-10-04-FG | 0.923 | 1-14UNS | 9/16-18UNF | 0.900 | 0.172 |
| 4 | FS2407-10-06-FG | 0.923 | 1-14UNS | 11/16-16UNF | 0.950 | 0.264 |
| 5 | FS2407-10-08-FG | 0.923 | 1-14UNS | 13/16-16UNF | 1.010 | 0.378 |
| 6 | FS2407-12-08-FG | 1.097 | 1 3/16-12UN | 13/16-16UNF | 1.090 | 0.378 |
| 7 | FS2407-12-10-FG | 1.097 | 1 3/16-12UN | 1-14UNS | 1.160 | 0.484 |
| 8 | FS2407-16-10-FG | 1.347 | 1 7/16-12UN | 1-14UNS | 1.260 | 0.484 |
